Choosing the Right Bow Thruster for Your Vessel

A bow thruster is an essential addition to any boat, providing improved maneuverability in tight spaces and challenging docking situations. Selecting the right thruster for your vessel requires careful consideration of several factors.

Understanding Bow Thruster Power Requirements

The power of a bow thruster is typically measured in kilograms of force (kgf) or pounds of thrust. As a general rule, larger and heavier vessels require more powerful thrusters.

For boats under 10 meters (33 feet), a thruster with 35-55 kgf is usually sufficient. Vessels between 10-14 meters (33-46 feet) typically require 55-95 kgf, while boats over 14 meters (46 feet) may need 95 kgf or more.

Wind and current conditions in your typical boating environment should also factor into your decision. Boaters in areas with strong currents or frequent high winds may benefit from selecting a thruster with higher thrust ratings.

Electric vs. Hydraulic Bow Thrusters

The two main types of bow thrusters are electric and hydraulic, each with distinct advantages:

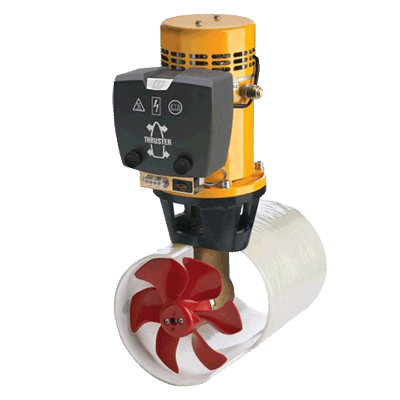

Electric Bow Thrusters

Electric bow thrusters are the most common type and are ideal for smaller to medium-sized vessels. They're relatively easy to install and operate directly from your boat's battery system.

• Advantages: Simpler installation, lower cost, minimal maintenance
• Limitations: Limited continuous operation time (typically 2-3 minutes), less power than hydraulic systems

Hydraulic Bow Thrusters

Hydraulic bow thrusters utilize your boat's hydraulic system to generate thrust. They're ideal for larger vessels or applications requiring extended operation.

• Advantages: Higher thrust capabilities, continuous operation without overheating
• Limitations: More complex installation, higher cost, requires existing hydraulic system

Tunnel Diameter and Installation Considerations

The tunnel diameter of your bow thruster significantly impacts its performance. Larger tunnels generally allow for more water flow and greater thrust, but require more installation space.

Common tunnel diameters range from 110mm for smaller vessels to 250mm or more for larger boats. The tunnel should be positioned as far forward in the bow as possible while maintaining adequate water depth above the tunnel.

Professional installation is recommended for most bow thruster systems to ensure proper placement, watertight sealing, and electrical connections.

Control Systems and Additional Features

Modern bow thrusters come with various control options:

• Basic joystick controls - Simple and intuitive operation
• Proportional controls - Provide variable thrust based on joystick position
• Wireless remote controls - Allow operation from anywhere on the vessel
• Integrated systems - Connect with other vessel controls for coordinated maneuvering

Additional features to consider include:

• Dual-prop systems for improved efficiency
• Ignition protection for vessels with gasoline engines
• Low-noise operation for more comfortable boating

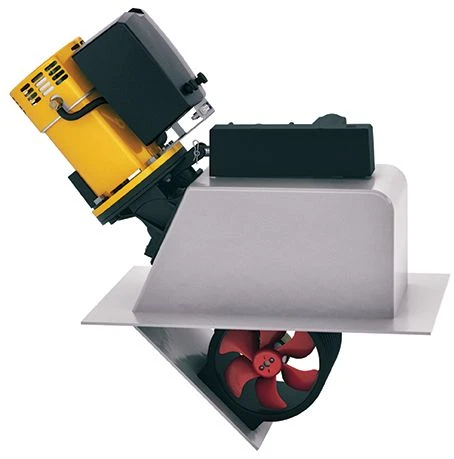

• Retractable designs to reduce drag when not in use

Maintenance Requirements

All bow thrusters require regular maintenance to ensure reliable operation:

• Regular inspection of anodes and replacement when necessary
• Checking electrical connections for corrosion
• Lubricating moving parts according to manufacturer specifications
• Cleaning the tunnel of marine growth and debris

Vetus bow thrusters are designed for durability and ease of maintenance, with readily available spare parts and comprehensive service documentation.

Making Your Decision

When selecting a bow thruster, consider your vessel's size and weight, your typical boating conditions, your budget, and your installation capabilities. Our team of experts is available to help you choose the perfect Vetus bow thruster for your specific needs.

Contact us today for personalized recommendations and professional installation services.
